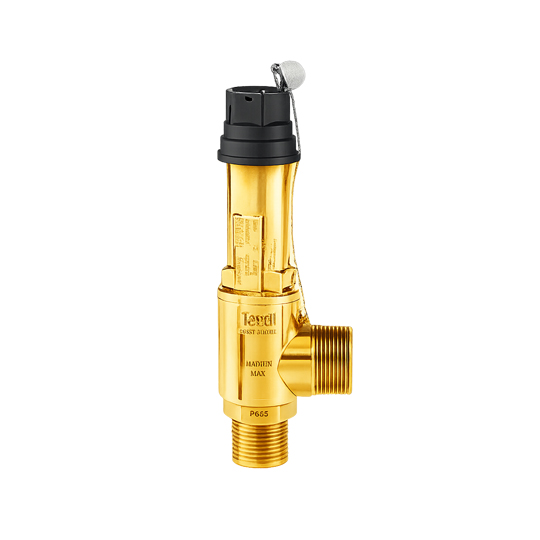

Safety devices 3/4" NPT x 3/4" SAE Model 3030/66(29)
Brand : Castel
Model : 3030/66(29)
Product type : Safety devices
Size : IN 3/4" NPT Connections OUT 3/4" SAE
Details : This series safety valve is a direct unbalanced load. The valve opens when thrust is exerted on the piston
by refrigerant under pressure. under calibrated conditions It overcomes the resistance of the spring acting on the piston.
Connections IN 3/4" NPT Connections OUT 3/4" SAE Orifice section [mm²] 113 Discharge coefficient Kd 0,9 Set pressure range [bar]
29 PS[bar]55 TS[°C] min -50 TS[°C] max +150
This device for use with the following ASHRAE 34:2019 refrigerants, Class A1:
- HCFC (R22)
- HFC (R134a, R404A, R407C, R410A, R507)
- HFO (R1234ze)
- HFO + HFC (R448A, R449A, R450A, R452A, R513A, R515A, R515B) , but cannot be used with R744
refrigerant of Group 2 as defined in Article 13 of Directive 2014/68/EU.
This series is the calibration range: From 9 to 50 bar for models 3030 and 3060
