วาล์วเปิด-ปิดด้วยมือหมุน / Stop valves by diaphragm Diaphragm Valve 3/8"ODS Product use with the following ASHRAE 34:2019 refrigerants, Class A1: HCFC (R22) HFC (R134a, R404A, R407C, R410A, R507) HFO (R1234ze)HFO + HFC (R448A, R449A, R450A, R452A, R513A, R515A, R515B) Product Details Connections ODS Ø [in.] 3/8" Kv [m³/h] 1,00 PS [bar] 28 TS [°C] min. -35 TS [°C] max. +90

กระจกตาแมว แบบมีแถบแสดงตรวจจับความชื้น 3/4"SAE.Flare. (ขันเกลียว) Product Details Connections Ø SAE.Flare. [in.] 3/4" PS [bar] 50 MWP [psi] (1) 500 TS [°C] min. -40 TS [°C] max. +120"

Stop valves by diaphragm Diaphragm Valve 1/4"Flare inlet and outlet. Valve use with the following ASHRAE 34:2019 refrigerants, Class A1: HCFC (R22) HFC (R134a, R404A, R407C, R410A, R507) HFO (R1234ze) HFO + HFC (R448A, R449A, R450A, R452A, R513A, R515A, R515B) Connections SAE Flare 1/4"" Kv [m³/h] 0,28 PS [bar] 28 TS [°C] min. -35 TS [°C] max. +90 1/4""Flare inlet and outlet. Valve use with the following ASHRAE 34:2019 refrigerants, Class A1: HCFC (R22) HFC (R134a, R404A, R407C, R410A, R507) HFO (R1234ze) HFO + HFC (R448A, R449A, R450A, R452A, R513A, R515A, R515B) Connections SAE Flare 1/4"" 1/4""Flare Product use Accessories for use with the following ASHRAE 34:2019 refrigerants, Class A1: HCFC (R22) HFC (R134a, R404A, R407C, R410A, R507) HFO (R1234ze) HFO + HFC (R448A, R449A, R450A, R452A, R513A, R515A, R515B) Product Details Connections SAE Flare 1/4"" Connections ODS Ø [in.] - ODS Ø [mm] - Kv [m³/h] 0,28 PS [bar] 28 TS [°C] min. -35 TS [°C] max. +90 Package pcs 45" ทางออก 1/4" SAE"

Flang shut off Valve, Outlet Flare Jointed 5/8"SAE.with in Access Valve Flare 1/4"SAE.

Solenoid valve G.3/8" FPT Diaphragm, specifically used with water, glycol, compressed air, gas, MOPD.=0 to 30 bar, Kv=2.60m3/h, Ps30 bar, Ts= -15 to +130 C

Solenoid valve 1-1/8"ODS​​​​​​​ Diaphragm, specifically used with HCFC ,HFC,HFO,water,compressed air,gas,oil, MOPD.=0.05 to 21 bar ,Kv=10.00m3/h ,Ps45 bar ,Ts= -35 to +105 C

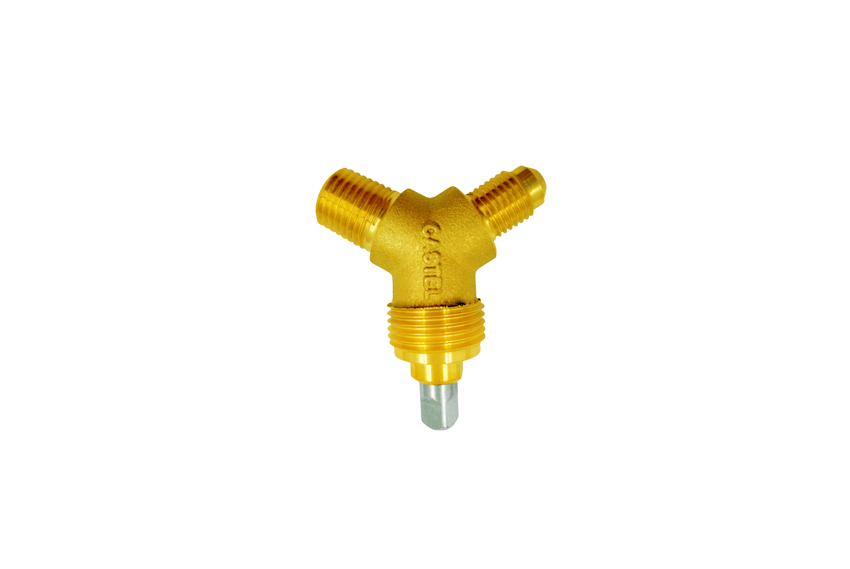

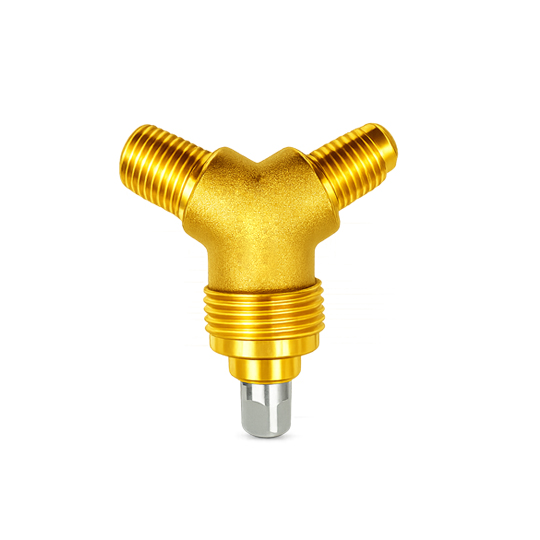

inlet Connecting =1/4" Male NPT. -outlet Connecting =1/4" Male SAE.FLARE made from hot pressed brass with Teflon (PTFE) valve seat

HM2 Typeคอยล์ไฟฟ้า8W 220-230V,50-60 Hz.สำหรับโซลินอยด์วาล์ว CASTEL HM2 Type คอยล์ไฟฟ้า Coil Type

The gauge mounting valves,which use the following refrigerant fluids: R22 , R134a, R404A, R407C, R410A; R507 proper to the Group II (as defined in Article 9, Section 2.2 of Directive 97/23/EC and referred to in Directive 67/548/EEC). Connections SAE. Flare 1/4" inlet and NPT.1/8" to gauge, Depth installing 17 mm. ,,Ts= -60 to +130 C ,Ps=45 bar ,that have to a little flange for fixing the valve to the control panel - a SAE-Flare connection for joining it to the copper tube - an NPT (type 8320) or a swivel SAE Flare (8321) connection for mounting the gauge"

วาล์วเปิด-ปิดด้วยมือหมุน / Stop valves by diaphragm Diaphragm Valve 1/4"ODS Product use with the following ASHRAE 34:2019 refrigerants, Class A1: HCFC (R22) HFC (R134a, R404A R407C, R410A, R507) HFO (R1234ze) HFO + HFC (R448A, R449A, R450A, R452A, R513A, R515A, R515B) Product Details Connections ODS Ø [in.] 1/4"Kv [m³/h]0,28PS [bar]28TS [°C] min.-35TS [°C] max. +90

RECEIVER VALVES inlet Connecting =3/8" Male NPT. -outlet Connecting =3/8" Male SAE.FLARE made from hot pressed brass with Teflon (PTFE) valve seat"
