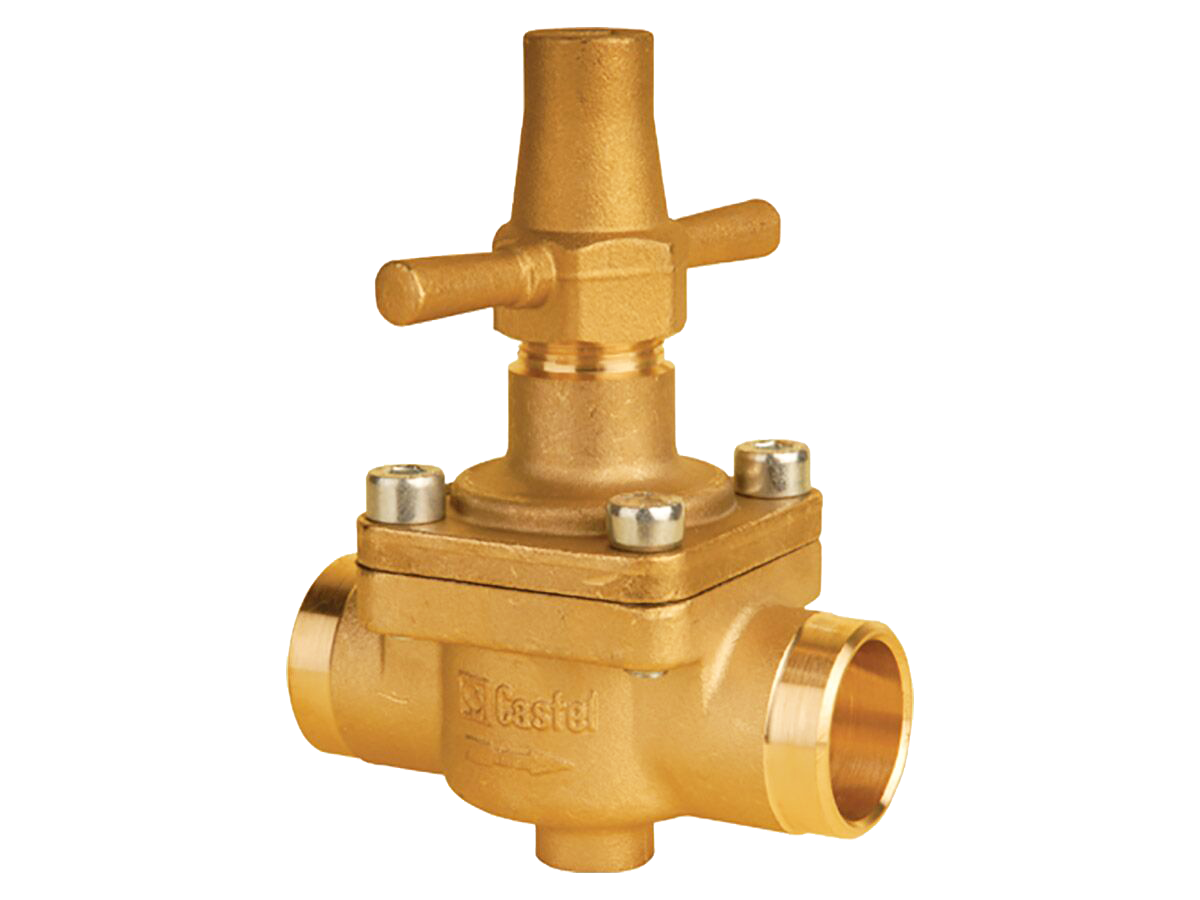

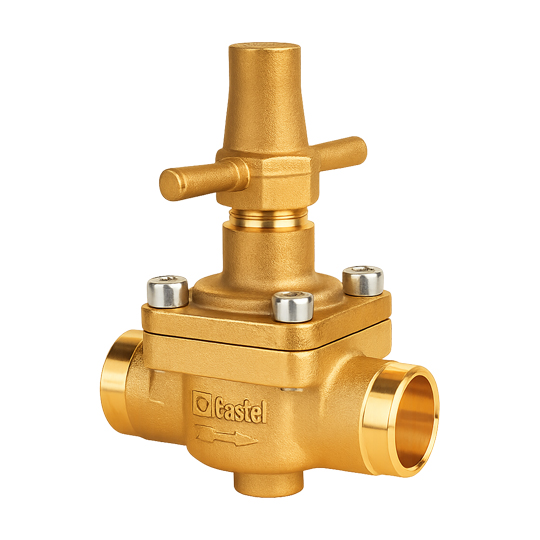

Castel Valve

Specification

Brand : Castel
Model : 6512/13
Product type : GLOBE VALVES

Size :เชื่อมต่อทางเข้า-ออก 1-5/8” ODS.(2"ODM)

Details : The globe valves,which use the following ,Connections 1-5/8”ODS.(2"ODM) ,

Ts= -35 to +150 C ,Ps=45 bar ,Kv=25.0 m3/h refrigerant fl uids: R22 , R134a , R404A ,

R407C , R410A ; R507 proper to the Group II (as defi ned in Article 9, Section 2.2 of Directive
97/23/EC and referred to in Directive 67/548/EEC).,Chloroprene rubber (CR) and aramidic fi bers

for gland seal, P.T.F.E. for seat gaskets

Stop valves by diaphragm (Hand valves) Model 6220/2

วาล์วเปิด-ปิดด้วยมือหมุน / Stop valves by diaphragm Diaphragm Valve 1/4"ODS Product use with the following ASHRAE 34:2019 refrigerants, Class A1: HCFC (R22) HFC (R134a, R404A R407C, R410A, R507) HFO (R1234ze) HFO + HFC (R448A, R449A, R450A, R452A, R513A, R515A, R515B) Product Details Connections ODS Ø [in.] 1/4"Kv [m³/h]0,28PS [bar]28TS [°C] min.-35TS [°C] max. +90

solenoid valve Model 1070/4

solenoid valve 1/2"SAE Diaphragm, specifically used with HCFC ,HFC,HFO,water,compressed air,gas,oil,

Stop valves by diaphragm (Hand valves) Model 6210/5

วาล์วเปิด-ปิดด้วยมือหมุน / Stop valves by diaphragm Diaphragm Valve 5/8"Flare inlet and outlet. Valve use with the following ASHRAE 34:2019 refrigerants, Class A1: HCFC (R22) HFC (R134a, R404A, R407C, R410A, R507) HFO (R1234ze) HFO + HFC (R448A, R449A, R450A, R452A, R513A, R515A, R515B) Connections SAE Flare 5/8" Kv [m³/h] 1,80 PS [bar] 28 TS [°C] min.-35 TS [°C] max. +90

GLOBE VALVES Model 6512/9

Connections 1-1/8”ODS.(1-3/8"ODM) ,Ts= -35 to +150 C ,Ps=45 bar ,Kv=8.4 m3/h

Check valve Model 3132/3

"Check Valve inlet -outlet Connecting =3/8"" ODS. Solder.made from hot pressed brass with Teflon (PTFE) valve seat Stainless steel spring"

solenoid valve Model 1522/02

solenoid valve electric coil Model 9300/RA7

HF2 Type คอยล์ไฟฟ้าCoil Type HF2 Voltage [V] 220/230 Frequency [Hz] 50/60 Power [W] 8.สำหรับโซลินอยด์วาล์ว CASTEL แบบสวมเร็ว

solenoid valve Model 1070/5

solenoid valve 5/8"SAE Diaphragm, specifically used with HCFC ,HFC,HFO,water,compressed air,gas,oil, MOPD.=0.05 to 21 bar ,Kv=2.61m3/h ,Ps45 bar ,Ts= -35 to +105 C

Stop valves by diaphragm (Hand valves) Model 6220/4

Stop valves by diaphragm Diaphragm Valve 1/2"ODS Product use with the following ASHRAE 34:2019 refrigerants, Class A1: HCFC (R22) HFC (R134a, R404A, R407C, R410A, R507) HFO (R1234ze) HFO + HFC (R448A, R449A, R450A, R452A, R513A, R515A, R515B) Product Details Connections ODS Ø [in.] 1/2" Kv [m³/h] 1,30 PS [bar] 28 TS [°C] min. -35 TS [°C] max. +90"
